0.37Kw Pressure Pump

Sizes available: 0.37Kw, 0.55Kw, 0.75Kw, 1.1Kw, 1.5Kw and bigger

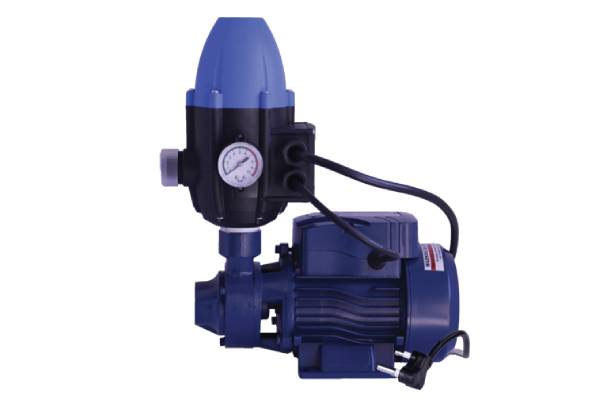

The Peripheral Vane Pump is an effective, reliable, and energy-efficient pump.

It has a flow rate of up to 25 liters per minute and is available in a combo that includes a flow control switch and lead out cable. When the pressure drops, this switch automatically starts the pump, then turns it off when there is no flow.

Operating Limits:

• Suction lift up to 6m with foot valve
• Maximum operating pressure: 8bar
• Maximum ambient temperature: +40°C
• Liquid temperature up to: +90°C
• Design Features:
• Pump body: Cast Iron
• Impeller:Brass
• Pump shaft:Stainless Steel 304
• Mechanical Seal:NBR/Graphite/Ceramic
• Product Standard:
• IEC 60034-1, IEC 335-1, IEC 34-1, ISO 2548
• Motor:
• Single-phase power supply with capacitor permanently activated.
• Fitted thermal overload.
• Insulation class: B
• Protection: IP44
• Speed of rotation: 2850rpm

Get A Quote

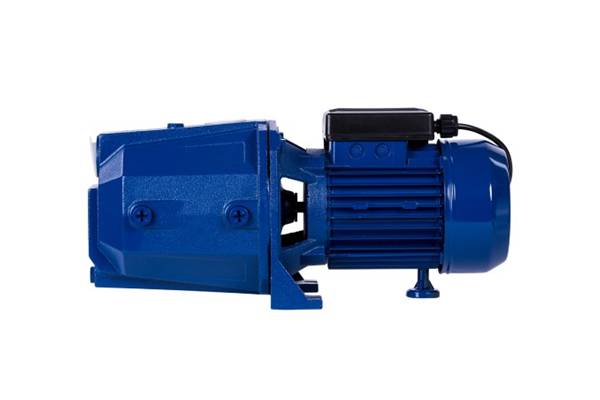

0.75KW pressure pump

The 0.75Kw pump is recommended for pumping clean water without abrasive particles, as well as liquids that are chemically non-aggressive to the pump’s materials.

This unit delivers flow up to 50L/min and pressure up to 5.6Bar.

They are suitable for domestic use, irrigation applications, and specifically for the extraction of water from well points due to their reliability, and ease of use.

Applications:

• These self-priming cast iron jet water pumps are designed for optimal efficiency.
• Suction capability 6m.
• Suitable application: Water storage tanks.
• System applications include domestic water supply and garden irrigation.
• Operating Limits:
• Maximum operating pressure: 8 bar
• Maximum ambient temperature: +40°C
• Liquid temperature: up to +60°C
• Design Features:
• Pump Body: Cast Iron
• Impeller: Brass
• Venturi and recirculation chamber: PPO (Poly Phenylene Oxide)
• Pump shaft: Stainless Steel 304
• Mechanical seal: NBR/Graphite/Ceramic

Get A Quote
